STAGE

34' w x 20' with overhead clearance of 13'

Height 36"

​

PA SYSTEM

10x RCF HDL2020A Dual 10" Powered Line array boxes, 5 flown on each side of stage

Lake LM26 Processor for Mains

4x  RCF Sub-9006 2x18” 7200 watt powered Subwoofers mounted under the stage (aux fed)

FOH Console: Midas Pro2 with Midas DL251 I/O and Ipad Control

Monitor Console: Midas M32

7x RCF ST12-SMA 12” powered Stage Monitors

RCF Sub8003 MKII 18” Active Subwoofer (drum or DJ use).

Audio snake: Whirlwind 48x10 with isolated monitor split.

(Copper)  Midas DL251 (Digital)

2 Cat6 STP lines for touring snake tie in.

2x 12ch sub snake with 4x returns

1x 6ch sub snake



MICS/DI's

(4) Shure SM58 wireless vocal mics

(8) Shure SM58

(6) Shure Sm57

(2) Shure Beta52A

(1) Shure Beta 91

(1) Sennheiser 609e

(3) Shure SM81

(6) Sennheiser e604

(6) Klark Teknik DN100 DI Box

(4) Klark Teknik DI 20P Stereo DI Box



DJ GEAR

2x Pioneer CDJ2000NXS2

1x Pioneer DJM900NXS2



BACKLINE

Ampeg SVT-610HLF 6x10" bass cab

Ampeg PF500 Bass Head

Fender HotRod Deville iii 2x12" Guitar Amp

Tama Star Classic Performer

22" Kick Drum

10" Rack Tom

12" Rack Tom

16" Floor Tom

2 Cymbal Stands

​

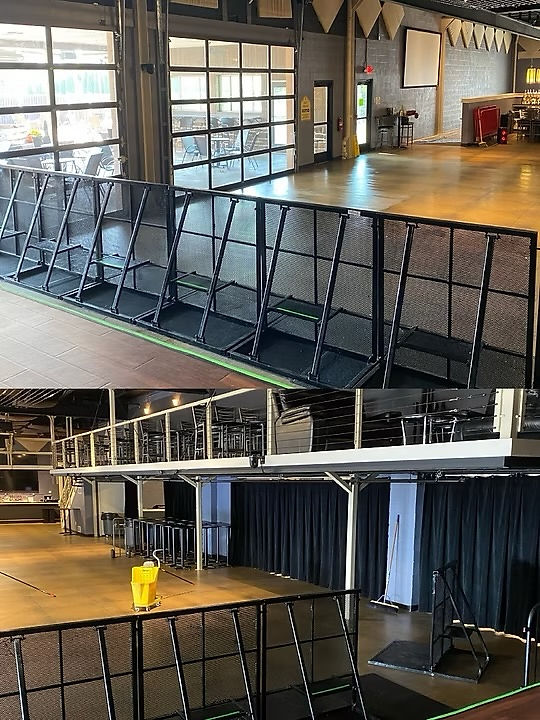

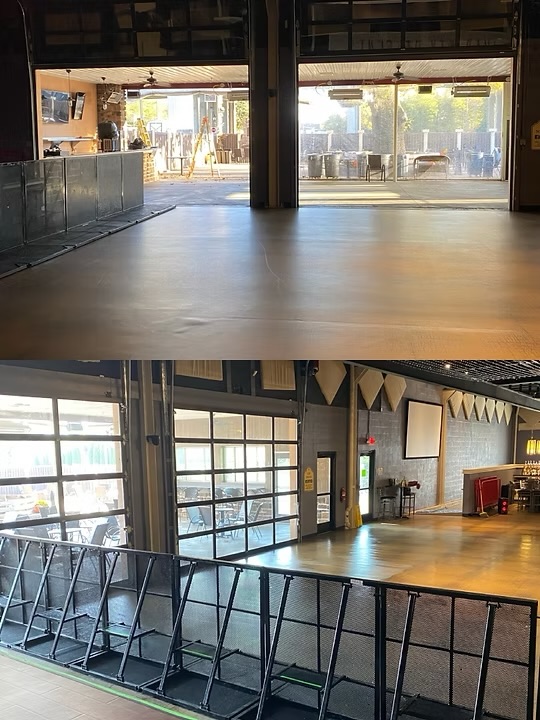

BARRICADE

10x 42”w x 4’h



RAMP

Steel, corrugated, non slip (3 feet wide x 10 feet long)



POWER

5x 20AMP circuits on stage

200A 3PH Cam Locks 20’ from Stage R

50AMP shore power available



LIGHTING

• GrandMA 2 on PC Lighting Control rig with Command and Fader wings

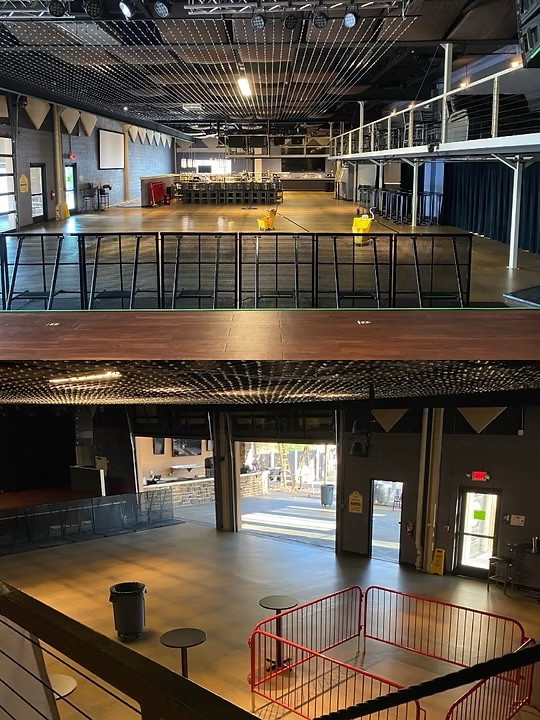

• 30’w x 60’ long LED Pixel Grid (hung over main crowd area) with over 5000 mapped pixels controlled by Resolume and/or MA on PC

• AKAI APC40 controller for Resolume

• 4x Chauvet Maverick MK2 Spot

• 8x Chauvet Rogue R2 Wash

• 6x Chauvet Rogue R1 Beam

• 4x Chauvet R1 FX-b

• 16x Chauvet Slimpar H RGBAU Par Cans

• 2x X-Laser Skywriter 2w lasers controlled by Quick Show with APC control surface

• Chauvet Amhaze Stadium

• 2x CryoFX CO2 Jet 512 CO2 canons

• 16x led par cans for side room floor lighting

• 1x 3 Pin Guest DMX line from FOH to upstage wall

​

VIDEO

• 15'x6'6” Chauvet 4mm LED Video wall mounted upstage controlled by PC running Resolume Arena

• Live video rig with Blackmagic Designs switching and 5x HD cameras and Live Streaming capability to most any host with simultaneous video recording

• In house video system for TV/Live video feeds featuring a 9x 55" led display matrix, 200" projection screen,

150" projection screens, 6x 120" projection screens, and various flat panel displays.
